PCB Fabrication
PCB Prototypes to Volume
For us, every project is important, no matter the size of your order. We will guide you through the PCB design to PCB fabrication.
PCB's for Toys to Spacecrafts
We have given PCBs to smallest startups and companies listed on the stock exchange. For defense application to Toys. We have got you covered.

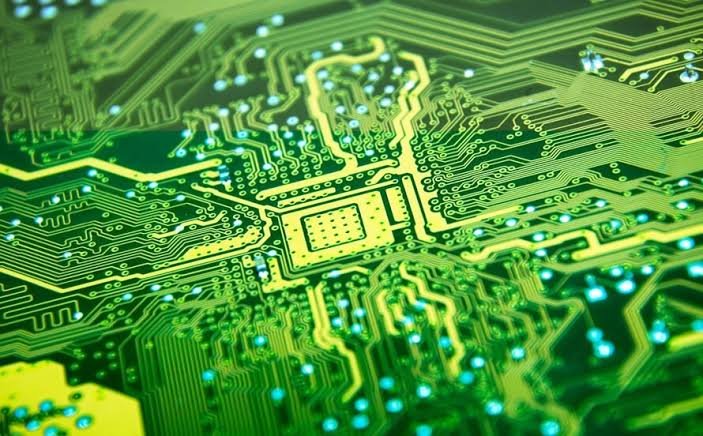

Rigid PCB
Rigid PCB’s are well-known for its high density, high reliability, designable, testability and maintainability.
- Material : FR4, CEM-3, Metal Core.
- Layer Count: 1 to 32 Layers
- Board Thickness: 0.2mm to 8mm
- Max Dimensions: 1500*610mm
- Max Cu Thickness: Inner 5oz/ outer 10oz .
- Min Line Width/ Space: 2.5mil/ 2.5mil
- Aspect Ratio: 16:1
- Surface Finish : HASL, HASL-LF, ENIG, Immersion Silver/Tin, Peelable Mask, Carbon Paste.

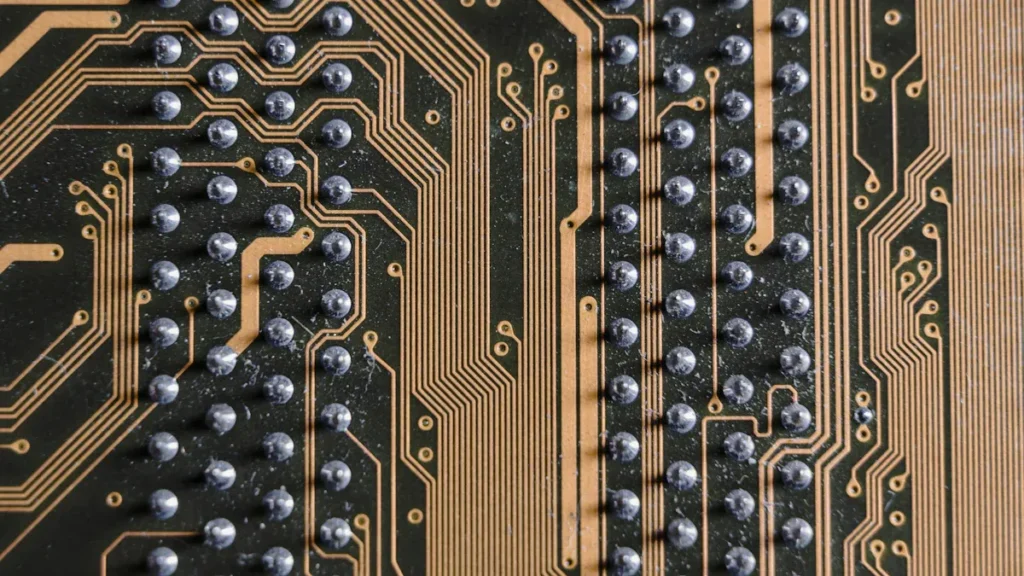

Flexible PCB
They are manufactured with flexible plastic material which enables the ability to fold over edges and wrap around corners, making them become one of the most important components in today’s most advanced electronic products.
- Layer Count: 1L to 12L
- Board Thickness: 0.002″ – 0.1
- Max Dimensions: 500*650mm
- Material: PI, PET, PEN, FR-4,dupont
- Final Cu Thickness: 1/3-2oz
- Impedance Control Tolerance: +/- 7%

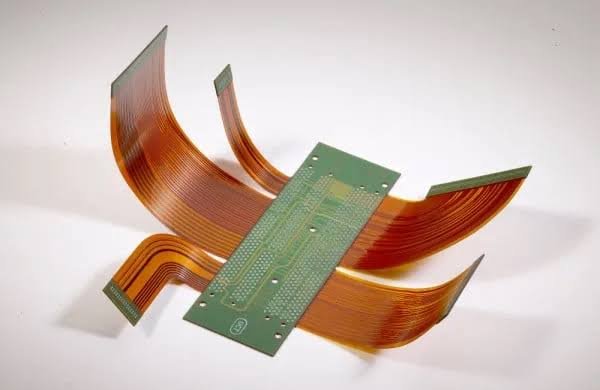

Rigid Flex PCB
Rigid-Flex PCB is the combination of rigid and flexible board technologies. This allows an application to have a more streamlined design and ability to reduce the overall board size and package weight.
- Layer Count: 2 to 18 Layers
- Board Thickness: 0.06mm-4.0mm
- Dimensions: 1092*660mm
- Final Cu Thickness: Inner 12oz/ outer 12oz
- Line Width/ Space: 3mil/ 3mil
- Impedance Control Tolerance: +/- 7%

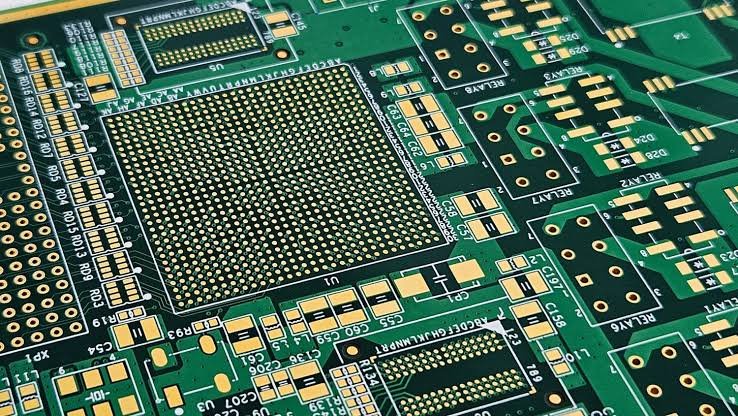

HDI PCB
HDI technology enables a PCB to have higher wiring density, which greatly enhances its electrical performance and optimizes overall package weight and dimension of an equipment.
- Material:FR4, CEM-3, Metal Core.
- Layer Count: 1 to 32 Layers
- Board Thickness: 0.2mm to 8mm
- Max Dimensions: 1500*610mm
- Max Cu Thickness: Inner 5oz/ outer 10oz .
- Min Line Width/ Space: 2.5mil/ 2.5mil
- Aspect Ratio: 16:1
- Surface Finish : HASL, HASL-LF, ENIG, Immersion Silver/Tin, Peelable Mask, Carbon Paste
